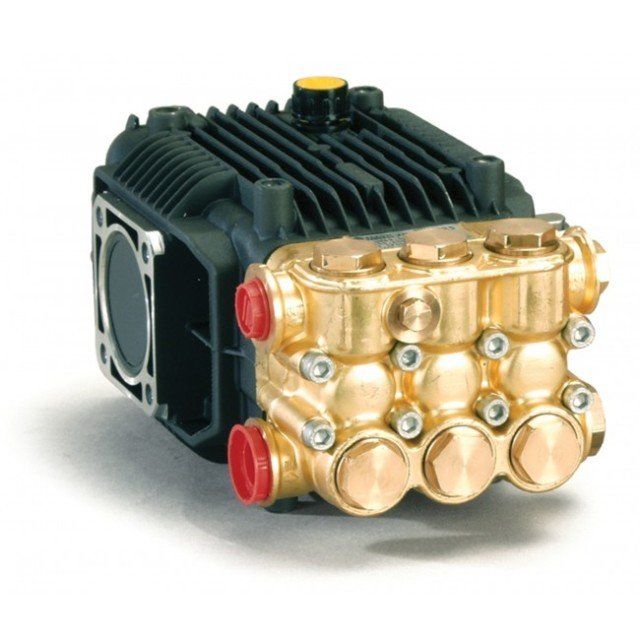

PUMPS + PUMP KITS

Flanged for direct couple to electric motors

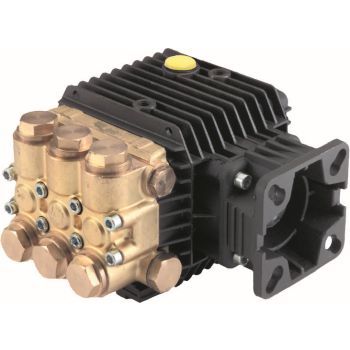

Flanged for direct couple to gasoline engines

EZ series flanged for direct couple to electric motors

EZ series flanged for direct couple to  gasoline engines

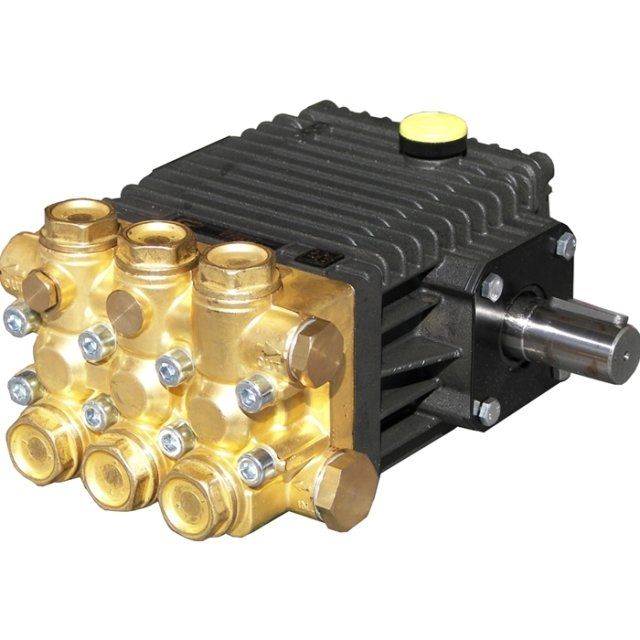

Pump rails included on all solid shaft pumps

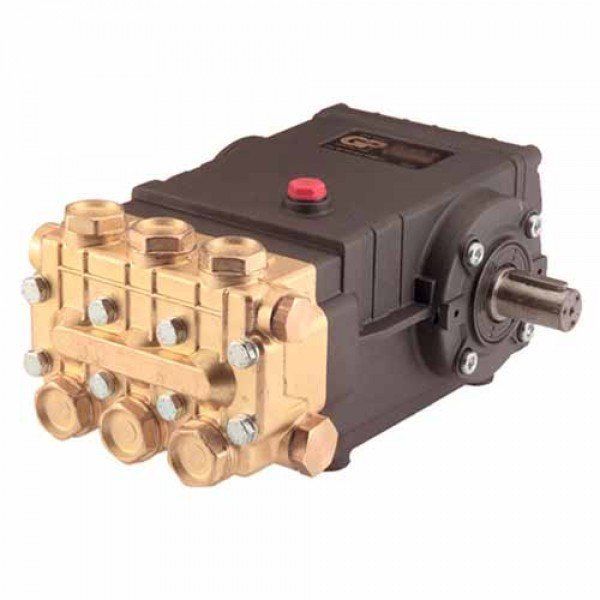

Car wash pumps

• Cast iron body
• Stainless Steel check valves
• Complete with base or torque arm
• Buna cups
• 140” max temp except 5321
• 180” max temp 5321

• Cast iron body
• Complete with base or torque arm
• Buna cups
• 140” max temp except 5321
• 180” max temp 5321

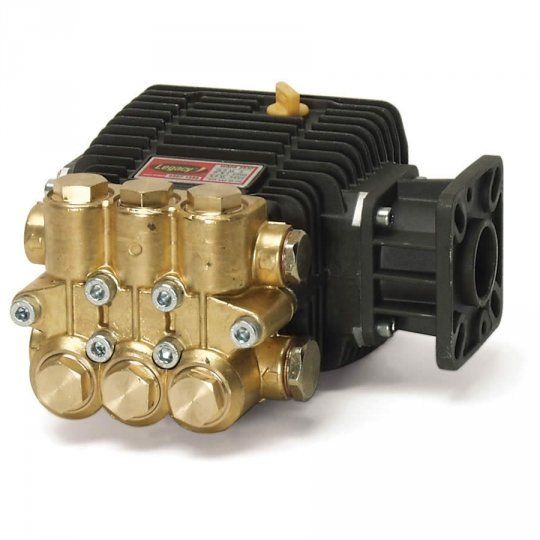

WMG SERIES: Premium Triplex Plunger Pump with Bronze Connecting Rods 3450 RPM

Direct Drive with 3/4" Hollow shaft and SAE Range, ½' inlet x ⅜ ' outlet, 14.7 lbs

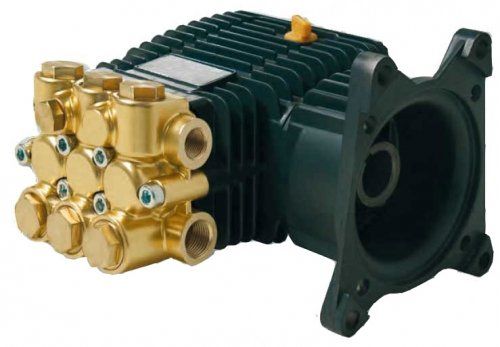

WMG-1 SERIES: Premium Triplex Plunger Pump with Bronze Connecting Rods

3450 RPM Direct Drive with 1" Hollow shaft and SAE Range, ½' inlet x ⅜' outlet, 14.7 lbs

WMH Series: Premium Triplex Plunger Pump with All Connecting Rods 1725 RPM

Direct Drive with ⅝' or ¾' Hollow Shaft and NEMA 56C Range, ½' inlet x ⅜' outlet, 14.7 lbs

WMH-F Series: Premium Triplex Plunger Pump with All Connecting Rods 3450 RPM

Direct Drive with ⅝' or ¾' Hollow Shaft and NEMA 56C Range, ½' inlet x ⅜' outlet, 14.7 lbs

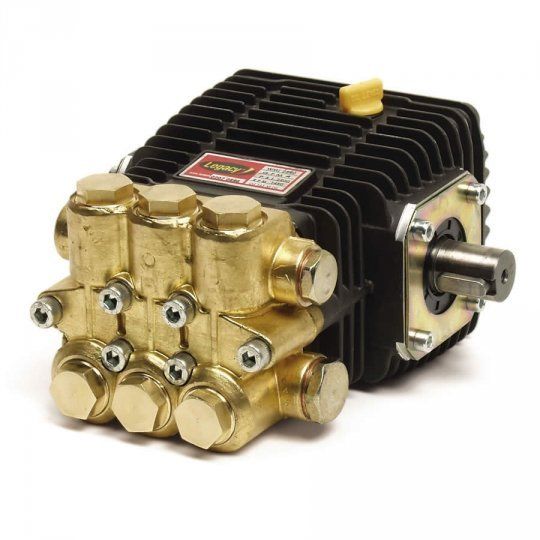

WML Series: Premium Triplex Plunger Pump with All Connecting Rods1450 RPM Pulley drive with 24 mm solid shaft, ½' x ⅜' outlet. 13.6 lbs.

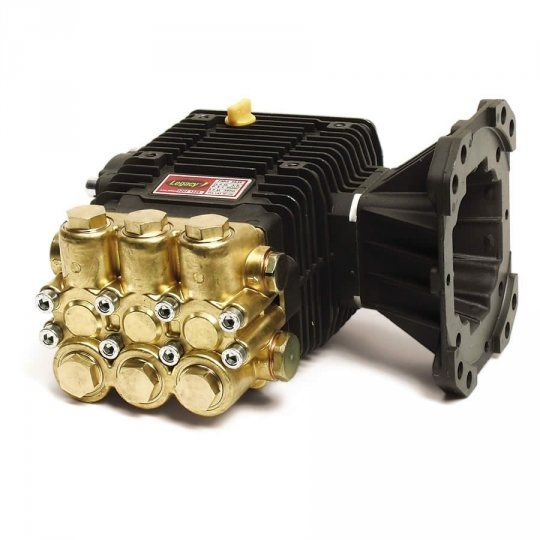

TMG Series: Industrial Triplex Plunger Pump with Bronze Connecting Rods. 3450 RPM Direct Drive with 1 IN. Hollow Shaft and SAE Range, ½ IN. X ⅜ IN. outlet. 19.8 lbs.

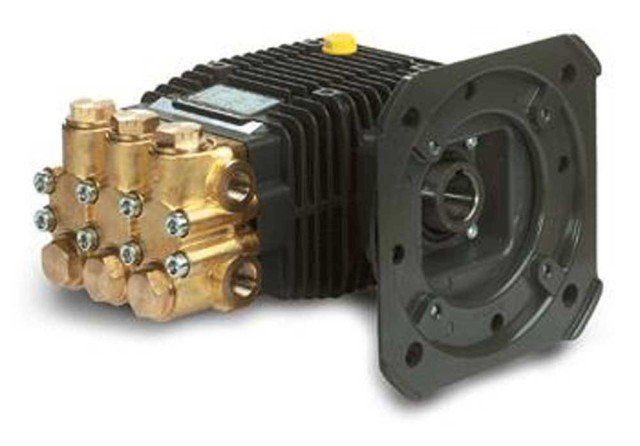

TMH Series: Industrial Triplex Plunger Pump with All Connecting Rods. 1725 RPM Direct Drive with 1-⅛ IN. Hollow Shaft and NEMA Range, ½ IN. X ⅜ IN. outlet. 18.9 lbs.

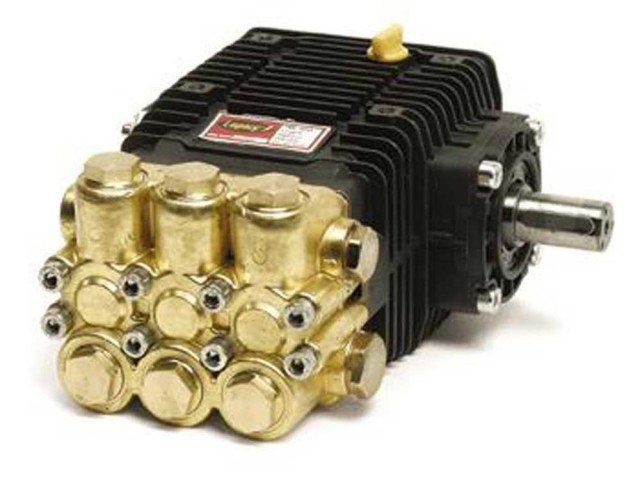

TML Series: Industrial Triplex Plunger Pump with All Connecting Rods. 1450 RPM Pulley Drive with 24 mm Solid Shaft, ½ IN. X ⅜ IN. outlet. 31.9 lbs.

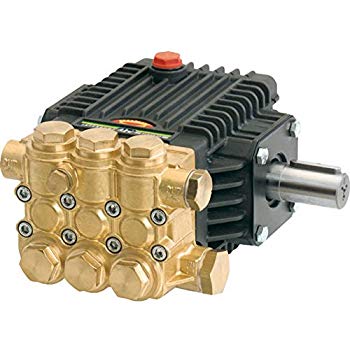

TTV Series: Heavy Industrial Plunger Pump with All Connecting Rods. 1450 RPM Pulley Drive with 24mm solid shaft, ¾ IN. inlet X ⅜ IN. outlet. 31.9 lbs.

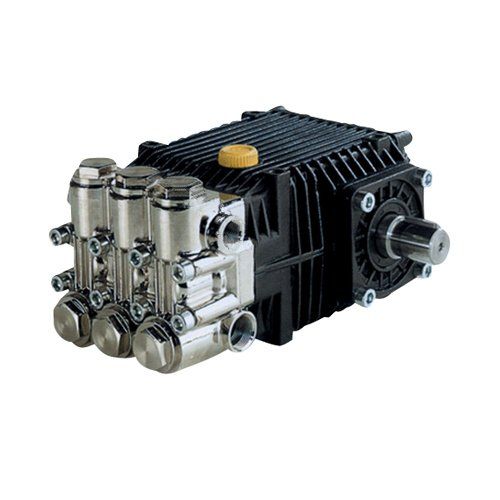

KKV Series: Heavy Industrial Triplex Plunger Pump with All Connecting Rods. 1450 RPM nd 1725 RPM Pully Drive with 30 mm solid shaft, 1 IN. X ½ outlet, 39.6 lbs.

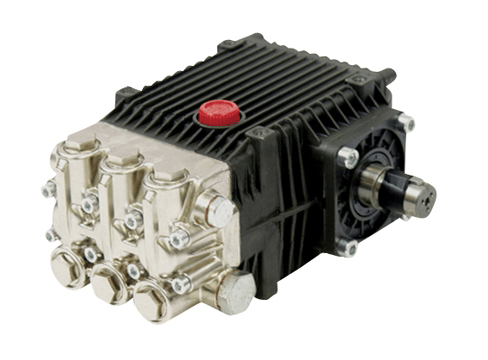

KTV Series: Heavy Industrial Plunger Pump with All Connecting Rods. 450 RPM Pulley Drive with 30 mm solid shaft, ½ IN. X ⅜ IN. outlet. 31.9 lbs.

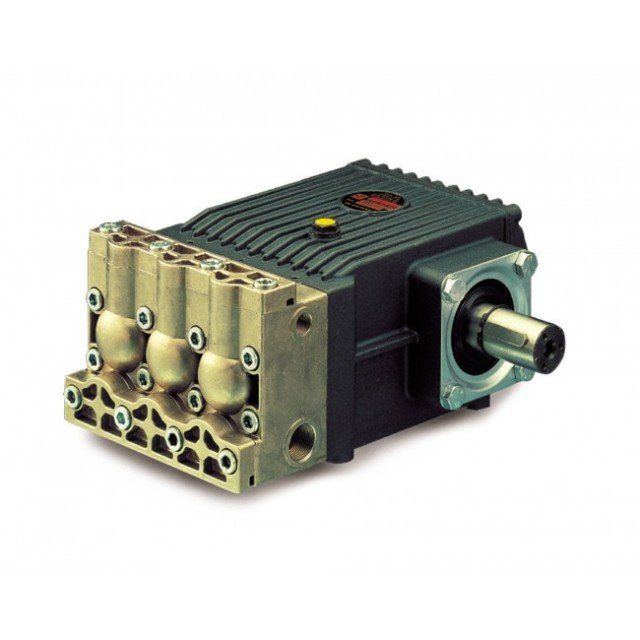

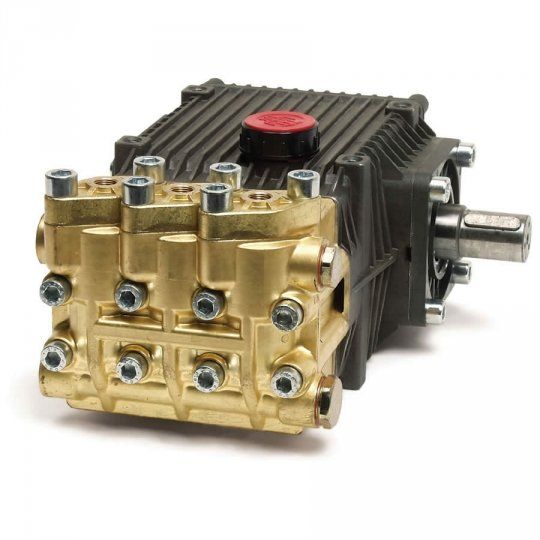

HDL Series: Ultra-High Pressure Industrial Triplex Plunger Pump. 1450 RPM Pulley Drive with 30 mm solid shaft, ½ IN. X ⅜ IN. outlet. 44.9 lbs.

1/4" male pipe thread nozzles, rated up to 5000 psi. Hardened stainless steel nozzle insert ensures consistent, accurate orifice size.

"QC" Color Coded, Hardened Stainless Nozzle, fits most 1/4" quick couplers. Rated for 4000 psi

Q-Style Chemical Nozzles are brass with a large ≠40 orifice and 65° spray angle or ≠50 orifice and 15° spray angle. Ideal for low pressure chemical applications.

Pump rails included on all Solid Shaft Pumps

EZ Series

• Great sales feature for economy washers
• 2000 psi max pressure
• 1/4" FPT inlet
• 140°F max temperature
• 5.4 oz weight

• 5000 psi max pressure
• 1/4" FPT inlet
• 190°F max temperature
• 1.0 oz weight

Bolts directly to 56C face electric motors 5/8" shaft

Bolts directly to 3-5 HP gasoline engines 34" shaft

Equivalent to General Pump EZ Electric Pump. Bolts directly to 184TC motor with 1-1/8" shaft

Equivalent to General Pump EZ gasoline engine pump. Bolts directly to 8-18 HP gas engine with 1" shaft.
