Infinity Pipe Systems high-performance compressed air pipe & airline fittings, are compatible with compressed air, nitrogen and vacuum systems. Extend, connect, and easily install compressed air systems by selecting from an expansive range of compatible Infinity Pipe Systems quick connection air pipe & airline fitting accessories.

Compressed air piping is responsible for the delivery of compressed air to the point of use. Its material, age and condition impact both system reliability and air quality. Compressed air piping made from iron will rust and corrode, creating buildup on the interior and reducing the functional diameter. This buildup results in pressure drop within the system, contributing to high levels of contamination and poor air quality.
Piping Installation

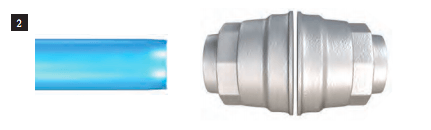

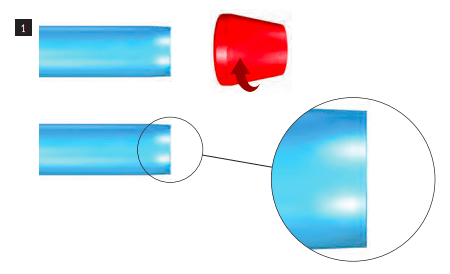

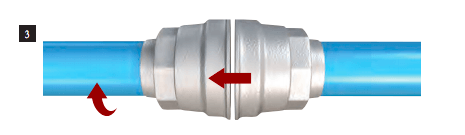

how to install aluminum pipe
Before pressurizing a piping system, please read and fully understand the requirements of the “INFINITY TEST PROCEDURE.”
Failure to comply with the requirements of the test procedure could lead to serious injury or property damage.
An INFINITY TEST PROCEDURE document is provided with every shipment of parts and can also be downloaded from this website -
www.appliedsystemtech.com
Tube Size Torque
20mm (3/4") 300 cN.m (26in-lbs)
25mm (1") 300 cN.m (26in-lbs)
32mm (1-1/4") 400 cN.m (35in-lbs)
40mm (1-1/2") 650 cN.m (58in-lbs)
50mm (2") 65 N.m (48ft-lbs)
63mm (2-1/2") 65 N.m (48ft-lbs)

Aluminum Air Line For Sale in Central Arkansas and Surrounding States
