ALUMINUM PIPE FITTINGS

ALUMINUM PIPE FITTING FOR SALE IN ARKANSAS

xArtboard 1
Infinity Pipe Systems high-performance compressed air pipe & airline fittings, are compatible with compressed air, nitrogen and vacuum systems. Extend, connect, and easily install compressed air systems by selecting from an expansive range of compatible Infinity Pipe Systems quick connection air pipe & airline fitting accessories.

Compressed air piping is responsible for the delivery of compressed air to the point of use. Its material, age and condition impact both system reliability and air quality. Compressed air piping made from iron will rust and corrode, creating buildup on the interior and reducing the functional diameter. This buildup results in pressure drop within the system, contributing to high levels of contamination and poor air quality.

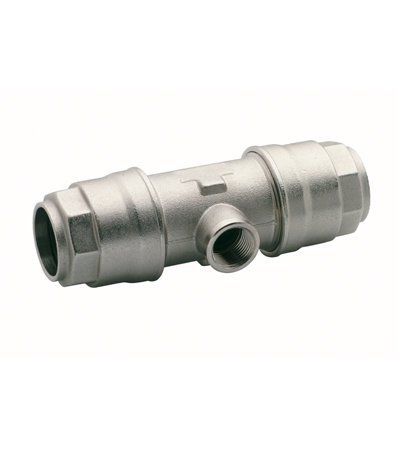

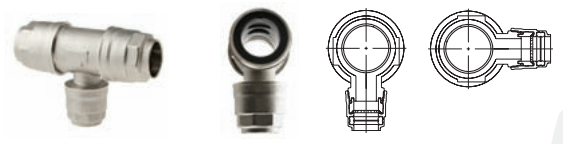

Outlet/Reducing Tee

The fitting is a valid alternative to the traditional swan neck, and proves itself as a fast and low-cost solution. The efficient internal system allows air to reach the point-of-use and drain toward the most convenient low point of the system, so
that no moisture stays within the main circuit.

This fitting is also an alternative to a traditional goose neck (up and over) take-off point. It prevents water from dropping out of the main piping loop into the drop line. All systems should be installed with a slight gradient to allow moisture to collect at one point in the system. This point should be fitted with a drop line and terminated with a condensate drain.

The particular internal geometric shape allows a fitting to be used vertically, as well as horizontally. During horizontal installation, please keep the two internal holes turned up toward the upper side.
90235 - Outlet Reducing Tee Fitting with Water Trap Insert
FITTINGS

Aluminum Air Line Fittings For Sale in Central Arkansas and Surrounding States
